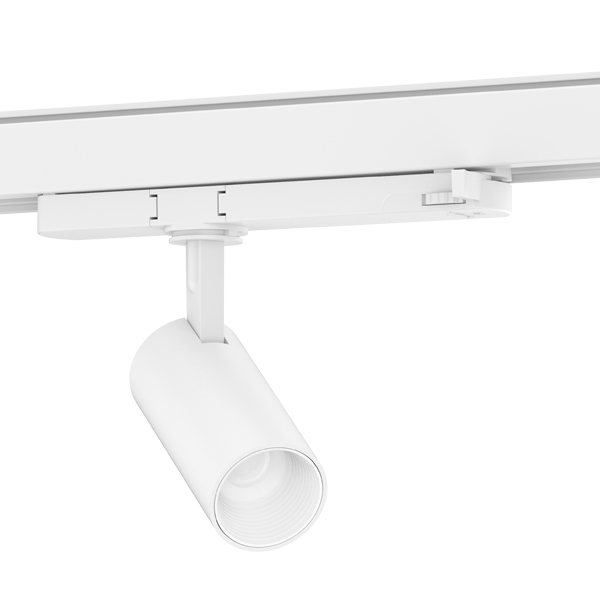

The LED track light with simple structure design. Integrate driver and 3 circuits adapter. Adopt Cree LED and lens for accent lighting. ADC12 aluminum light body provides excellent heat dissipation. Adjustable lighting orientation with 350° in horizontal direction and 90° in vertical direction.
LED track light features：
| Model No. | TL62-8W | TL62-12W | TL62-16W | ||||||||||
| Watt(W) | 8W | 12W | 16W | ||||||||||
| Dimension(mm) | 196*46*180 | 196*46*200 | 196*46*200 | ||||||||||
| Cutout (mm) | - | ||||||||||||
| Rated Input Voltage(V) | AC230V | ||||||||||||
| Input Voltage(V) | AC220-240V | ||||||||||||
| LED | COB | ||||||||||||
| SDCM | <3 | ||||||||||||
| CCT(K) | 1-CCT: 2700K/3000K/4000K/5000K | ||||||||||||
| Luminous Flux (lm) ±5% |
Non-DIM | 1-CCT | 540Lm-600Lm | 800Lm-880Lm | 1000Lm-1080Lm | ||||||||
| DIM | |||||||||||||
| CRI | ≥80 | ||||||||||||
| Beam Angle (°) | 36° | ||||||||||||
| UGR | - | ||||||||||||
| LED Driver 驱动 |
built-out | ||||||||||||
| DIM | - | ||||||||||||
| Microwave Sensor | - | ||||||||||||
| Emergency Kits | - | ||||||||||||
| CCT Selection Switch 变色温 |
- | ||||||||||||
| Protection Class | Class I I | ||||||||||||
| IP Rating | IP20 | ||||||||||||
| IK Rating | - | ||||||||||||
| Finishing color | White RAL 9016 | ||||||||||||
| Material | ADC12 | ||||||||||||
| Lifetime (hr) | 50,000h | ||||||||||||
| Glow wire test (°C) | 750℃ | ||||||||||||
| Operating Temp.(°C) | -20℃~45℃ | ||||||||||||
| Storage Temp.(°C) | -20℃~65℃ | ||||||||||||
| Installation | Recessed | ||||||||||||
