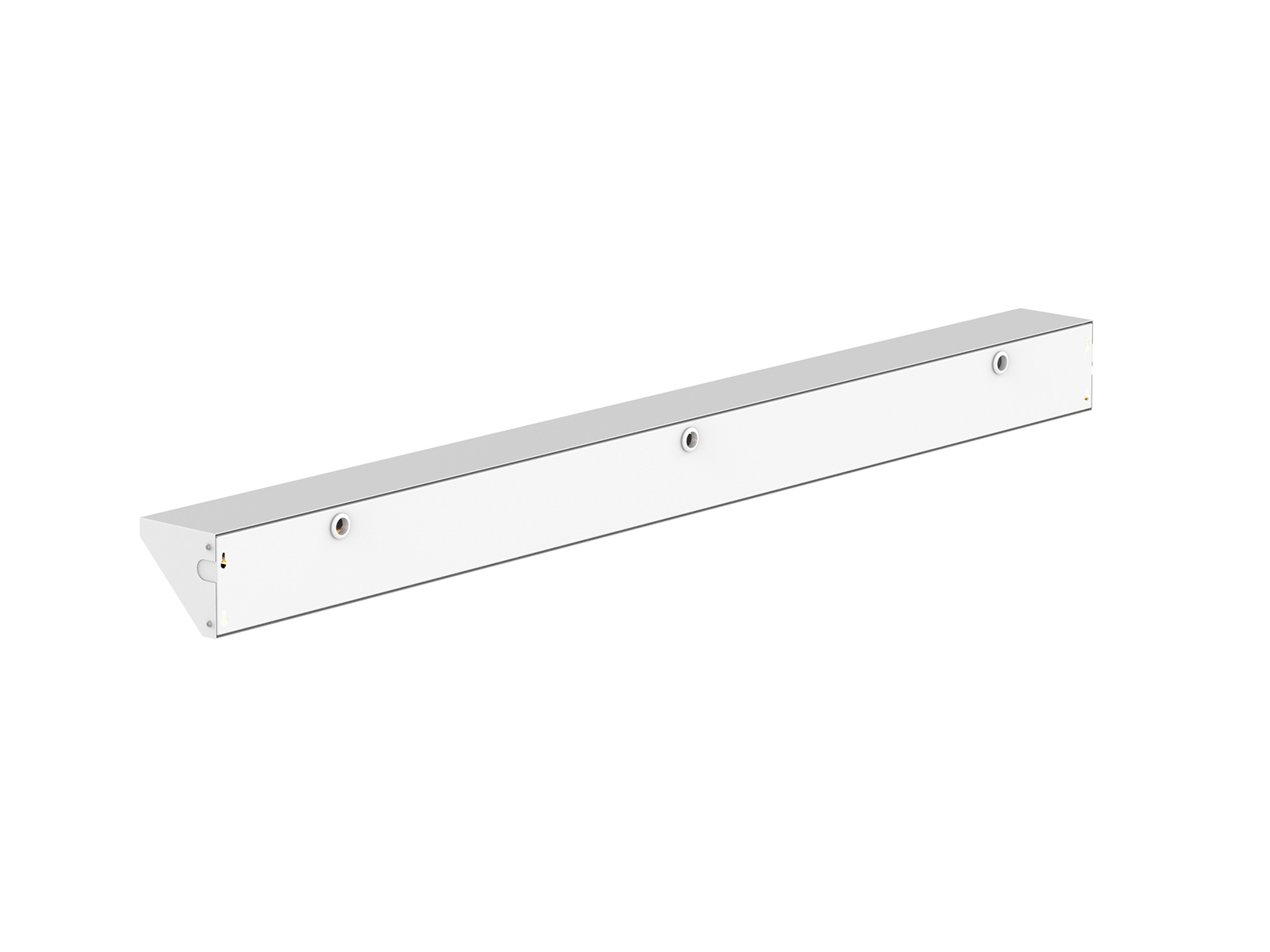

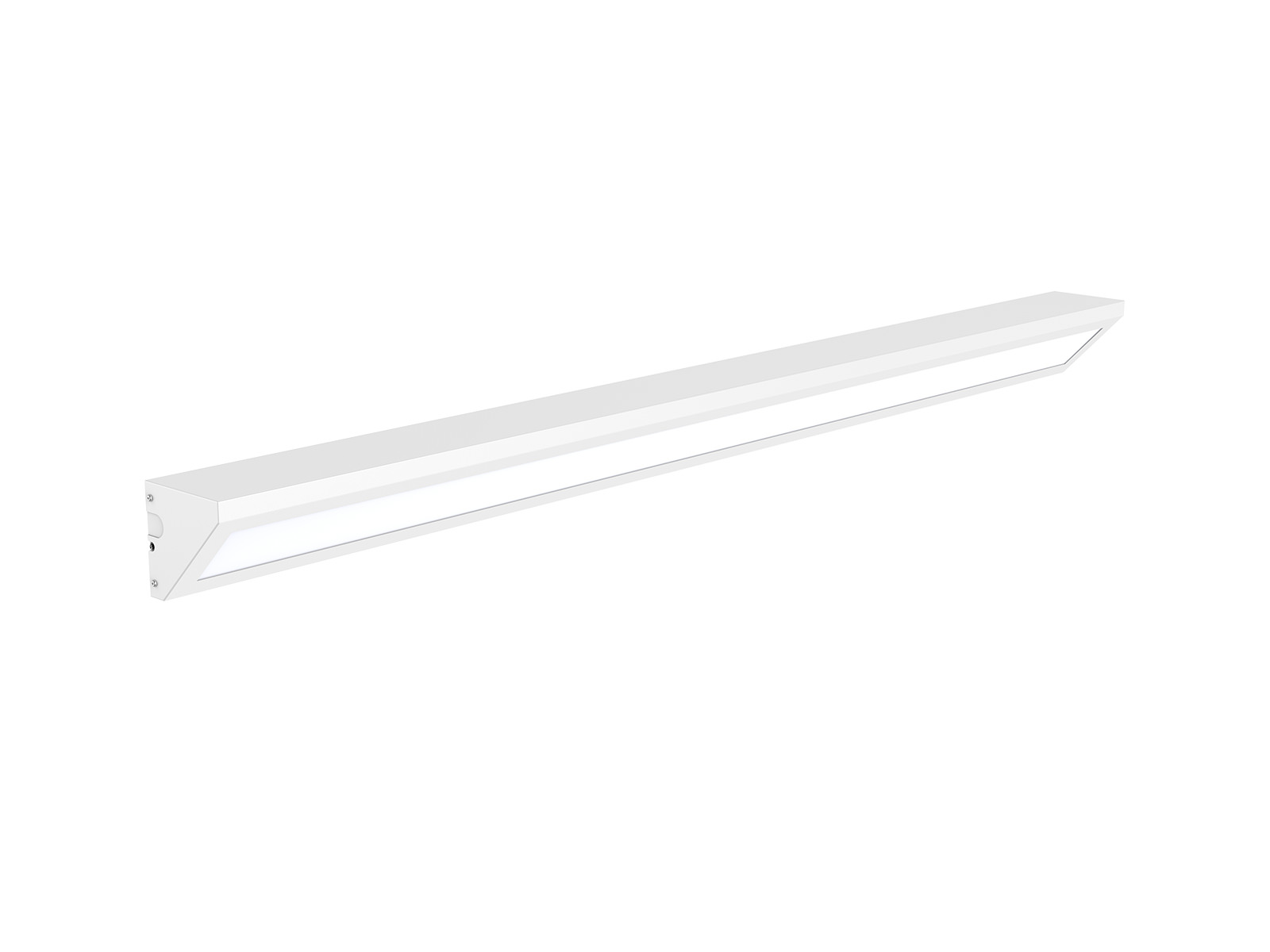

This cornice luminaire gives a downward, angled light output for indoor applications including eaves and aisle. It has a simple appearance and modern
design, the lamp body is a long shape but with 90 degree vertical surface, so it can fit both wall surface and ceiling surface. For quick installation, it has
three cable entry holes on backward, also has knock hole in end cap which supports more possibility for different application cable connection.
Finished color: White RAL9016
PC opal diffuser
Support both rear and side cable entry
Available for emergency function (3 hours)
Compatible for brand drivers like Philips, Osram, Tridonic etc
Internal flicker free driver
Application Areas:It’s widely use in eaves, aisles, healthcare, social housing, warehouse etc.
Code No. | WL143-1500-40W |
Dimension(mm) | 1460*110*110 |
Watt(W) | 40W |
Rated Input Voltage(V) | AC220-240V |
Input Voltage(V) | AC198-264V |
Light Source | SMD |
SDCM | <6 |
CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K |
CCT Selection DIP Switch | NO |
Non-DIM 1-CCT Luminous Flux (lm) ±5% | 4150-4450 |
CRI | >80 |
Beam Angle (°) | 110° |
LED Driver | Built-in |
Emergency Kits | YES |
Electrical Class | Class I |
Ingress Protection (IP Rating) | IP20 |
Product Finishing(Base) | White RAL9016 |
Optics Material | PC |
Housing Material | Iron |
Lifetime (hr) | 50,000h |
Glow wire test (°C) | PC(750°C) |
Operating Temp. (°C) | -20°C~45°C |
Storage Temp. (°C) | -20°C~65°C |
Installation | wall mount |
