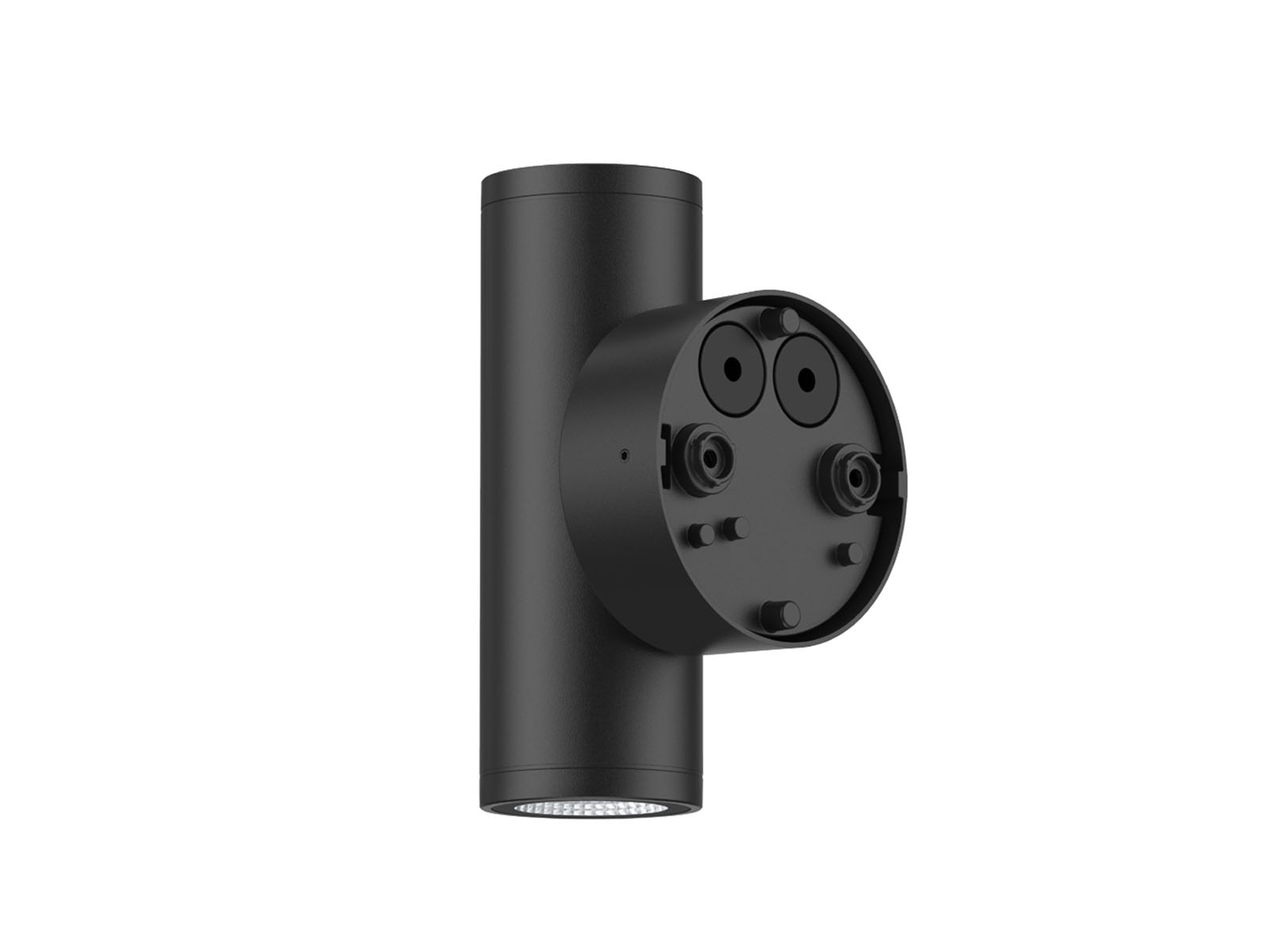

WL28 Up and Down Canister Wall Light

The LED wall light with up and down light effect design. Adopt 6063 aluminum housing providing excellent thermal management. IP65 waterproof for outdoor use.

Wall mounted light features:

  • IP65 waterproof.
  • Up and down luminous design.
  • Different beam angle for options.
  • Loop-in and loop-out function.
  • Aluminum housing provides excellent thermal management.
Model No. WL28-10W WL28-20W WL28-27W
Watt(W) 2x5W 2x10W 2x13.5W
Dimension(mm) 170*60*105 200*76*121 230*100*145
Rated Input Voltage(V) AC100-240V
Input Voltage(V) AC85-265V
LED COB
CCT(K) 1CCT: 2700K / 3000K / 4000K / 5000K
Non-DIM 1-CCT "Luminous Flux (lm) ±5%" 700~900 2000~2200 2800~3200
CRI ≥80
Beam Angle (°) 15° / 24°/ 60° 15° / 36° / 60° 15° / 24° / 36° /60°
LED Driver Built-in
Protection Class Class Ⅰ
IP Rating IP65
Finishing color White RAL 9016 / Black RAL 9005
Material 6063 Aluminum
Lifetime (hr) 50,000h
Glow wire test (°C) 750℃
Operating Temp.(°C) -20℃~40℃
Storage Temp.(°C) -20℃~65℃
Installation Wall mount
