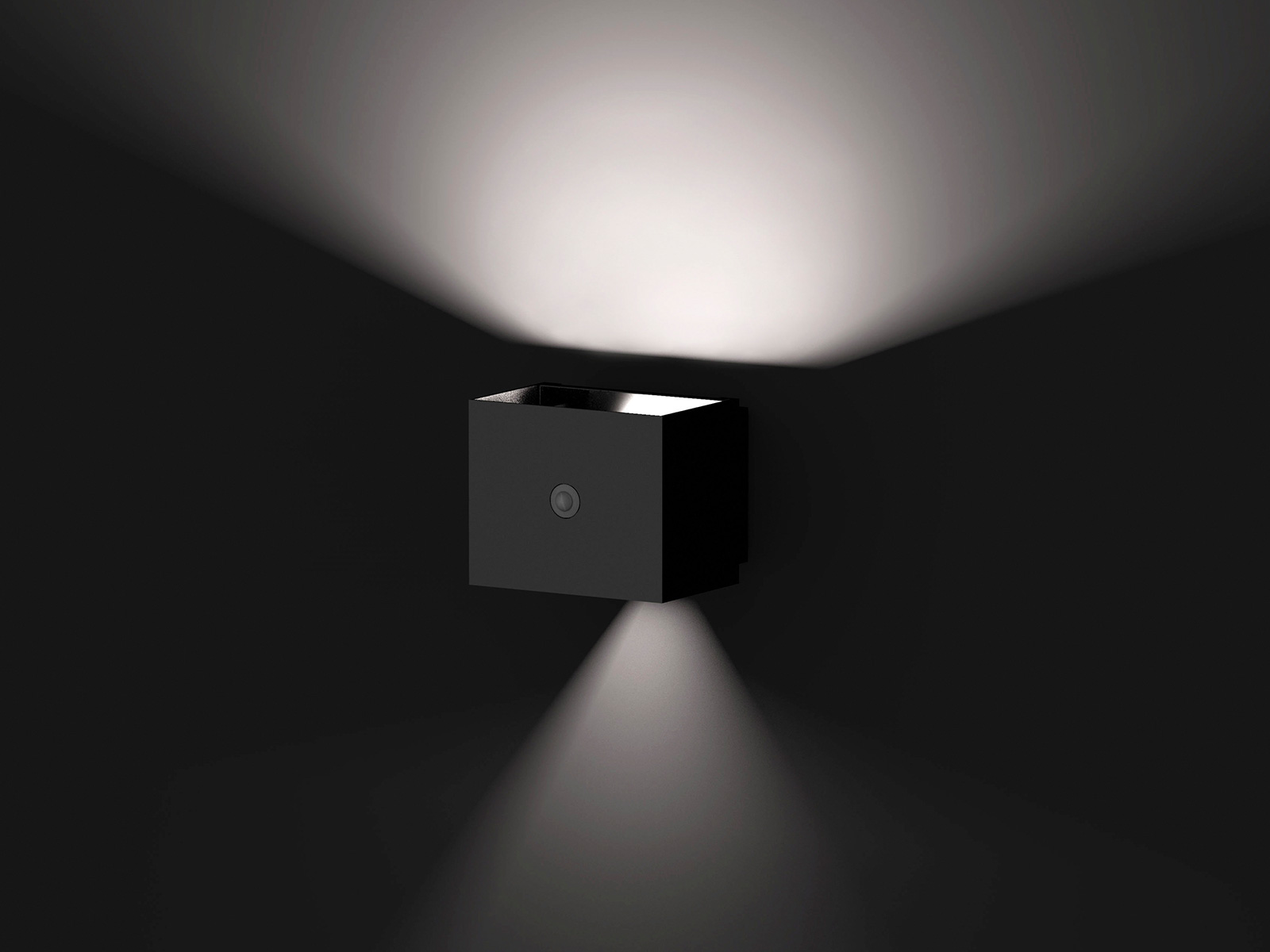

This wall lamp adopts PC material, it has a light weight for a better installation. It also with unique up and down light functional design, the
beam angle can be adjusted by the lexible plate.
Application Areas：It is designed for indoor and outdoor lighting applications hotel, park, and corridors etc.
| Code No. | WL48-8W | WL48-10W-S |
|---|---|---|
| Dimension(mm) | 132*110*112 | |
| Watt(W) | 2X4W | 2X5W |
| Rated Input Voltage(V) | AC100-240V | |
| Input Voltage(V) | AC85~265V | |
| Light Source | SMD | |
| SDCM | <6 | |
| CCT(K) | 1-CCT: 3000K/4000K /5000K/5700K | |
| Non-DIM 1-CCT Luminous Flu x (lm) ±5% | 720-750 | 650-780 |
| CRI | 80 | |
| Angle (°) | 15°- 120° | |
| LED Driver | Built-in | |
| Sensor | - | PIR sensor+Daylight sensor |
| Electrical Class | Class I I | |
| Ingress Protection (IP Rating) | IP65 | |
| Product Finishing(Base) | Black RAL 9005 | |
| Optics Material | Glass | |
| Housing Material | PC | |
| Lifetime (hr) | 50,000h | |
| Glow wire test (°C) | 650°C | |
| Operating Temp. (°C) | -20°C~45°C | |
| Storage Temp. (°C) | -20°C~65°C | |
| Installation | Wall mount | |
