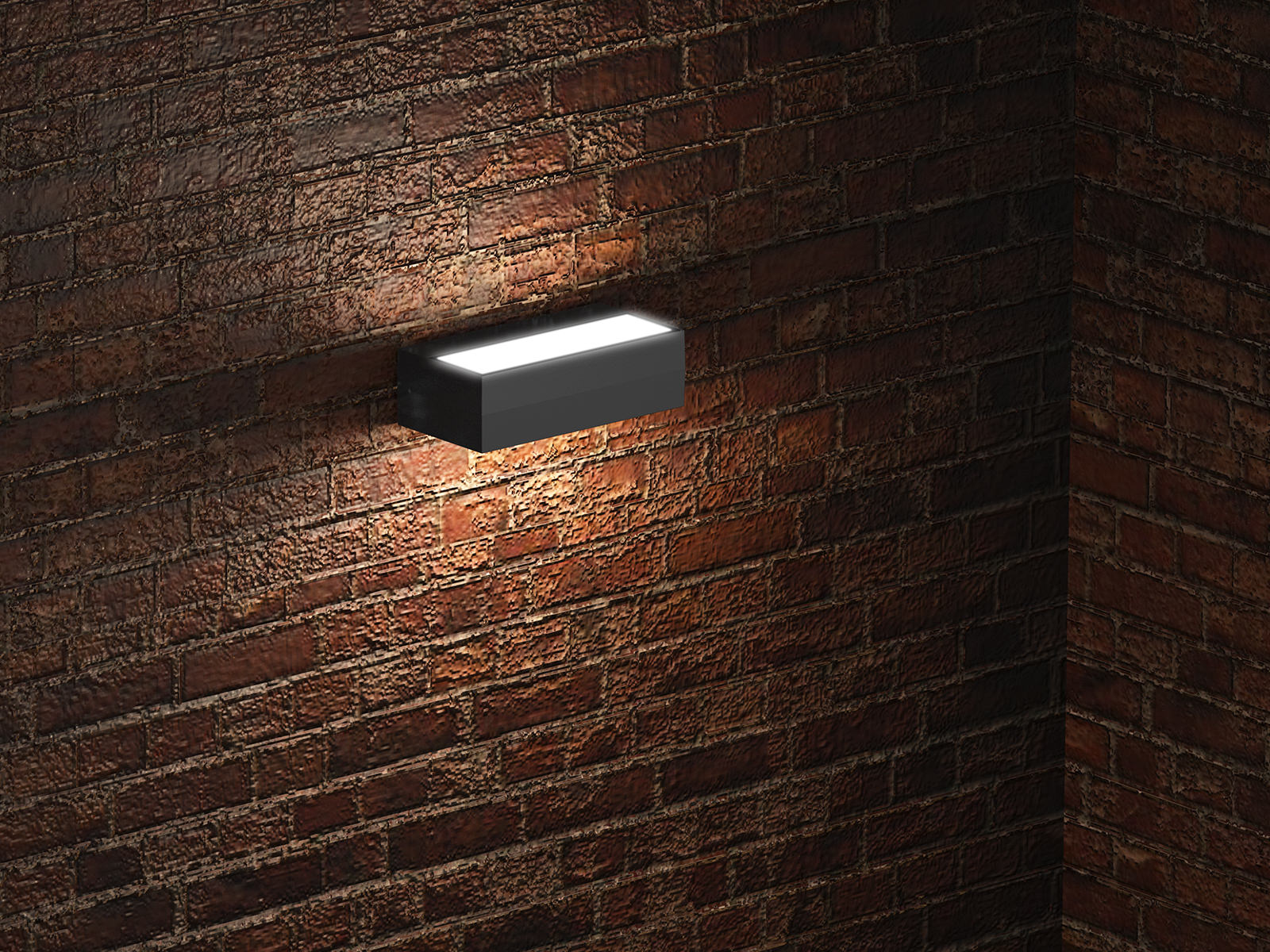

This wall lamp is a direct&indirect,direct/indirect lighting design, the lamp body is made of aluminum diecasting, which has good heat dissipation, the lamp surface is sprayed with outdoor sand grain powder, which is corrosion resistant. Besides, it adopts SMD light source, so that can do CCT adjustable version. Strong structure design, IP65 waterproof will suit to a wider application area.
Application: It is designed for indoor and outdoor lighting applications hotel, park, and corridors etc.
Code No. | WL88-10W | WL88-15W | WL88-10W-P3 | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Dimension(mm) | 200*100*60 | 300*100*60 | 200*100*60 | ||||||||||||||
Cutout (mm) | - | ||||||||||||||||
Watt(W) | 10W(Unswitchable ) | 15W(Unswitchable ) | 10W(Switchable ) | ||||||||||||||
Rated Input Voltage(V) | 230V | ||||||||||||||||
Input Voltage(V) | 220-240V | ||||||||||||||||
LED Module Input | - | ||||||||||||||||
Light Source | SMD | ||||||||||||||||
SDCM | < 6 | ||||||||||||||||

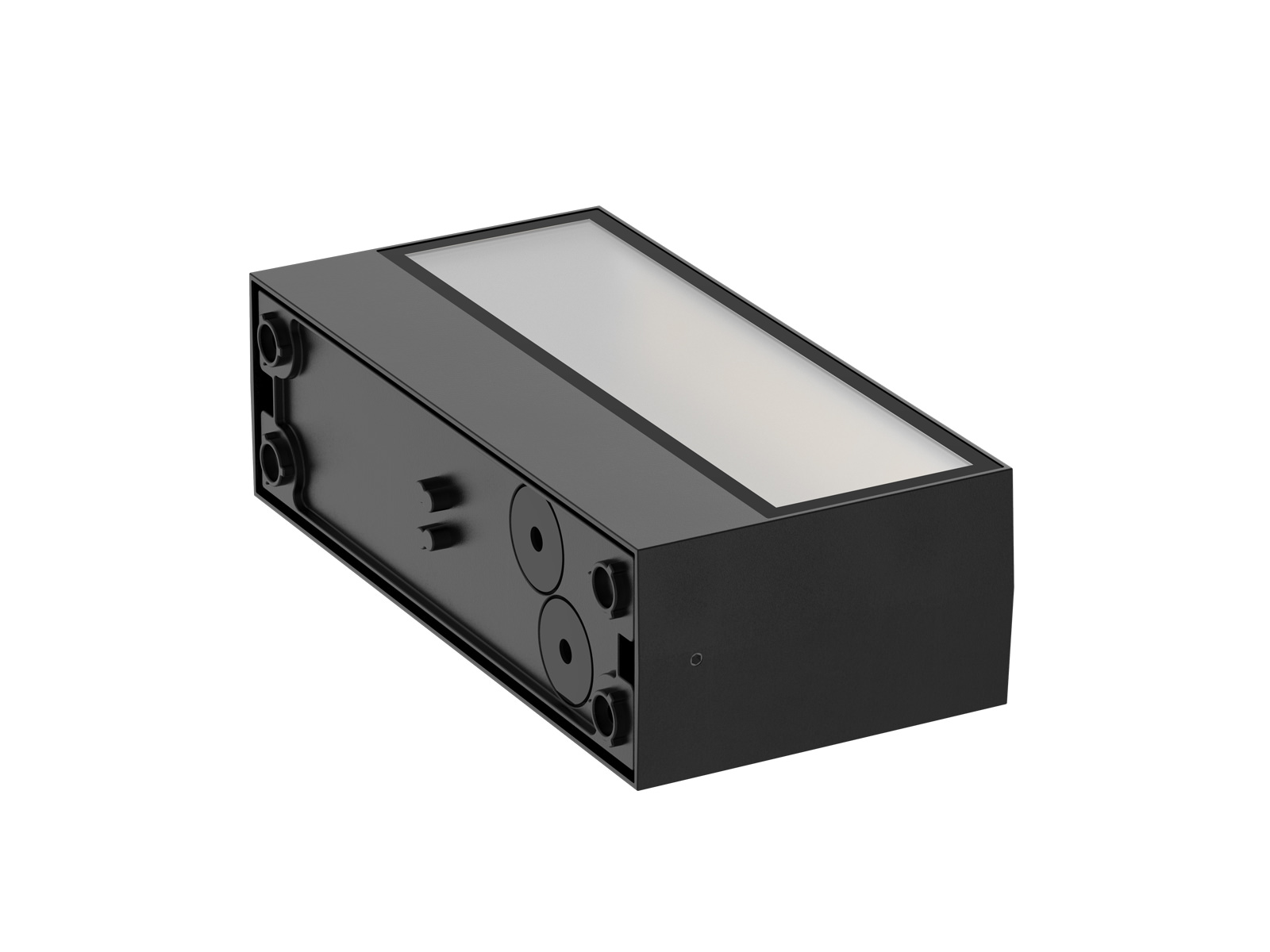

CCT(K) | 1-CCT:3000K/4000K/5000^5700K||3-CCT: 3000K + 4000K + 5700K | 3-CCT: 3000K + 4000K + 5700K | |||||||||||||||
CCT Selection DIP Switch | YES | ||||||||||||||||
Non-DIM 1-CCT Luminous Flux (lm) ±5% | 600-750LM | 850-1100LM | - | ||||||||||||||
DIM 1-CCT Luminous Flux (lm) ±5% | 550-700LM | 800-1050LM | - | ||||||||||||||
Non-DIM 3-CCT Luminous Flux (lm) ±5% | 600-750LM | 850-1100LM | - | ||||||||||||||
DIM 3-CCT Luminous Flux (lm) ±5% | 550-700LM | 800-1050LM | 550-700LM | ||||||||||||||
CRI | CRI80 | ||||||||||||||||
Beam Angle (°) | 60°x115°x40。 | 90°*110°*40° | |||||||||||||||

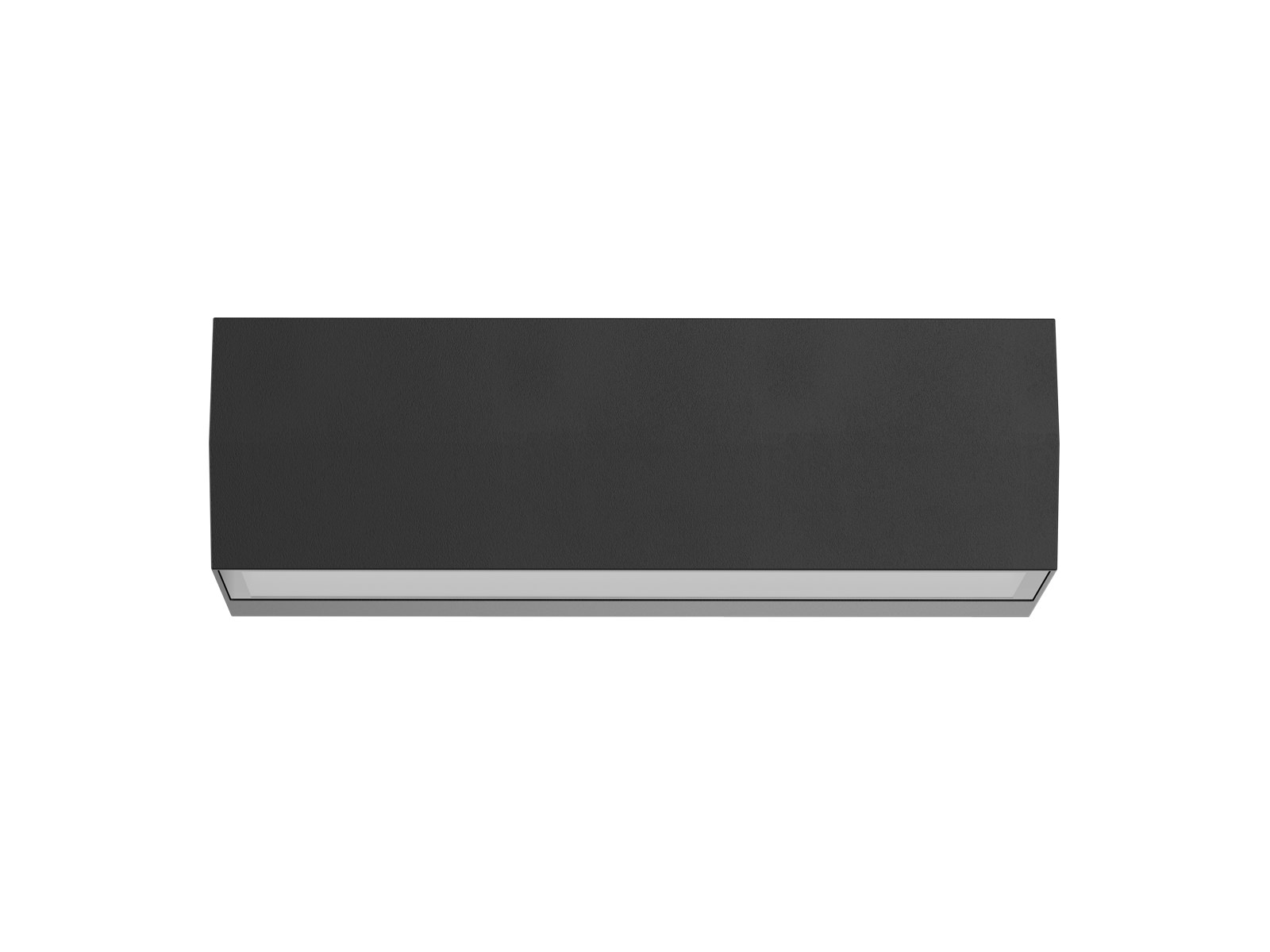

LED Driver | Built-in | ||||||||||||||||
Dimming Option | Triac | ||||||||||||||||
Electrical Class | Class I | ||||||||||||||||
Ingress Protection (IP Rating) | IP65 | ||||||||||||||||
Impact Resistance (IK Rating) | / | ||||||||||||||||
Product Finishing(Base) | Black | ||||||||||||||||
Materials of Optics | POGlass | ||||||||||||||||
Materials of Housing | Aluminium ADC12 | ||||||||||||||||
Lifetime (hr) | 5,0000h | ||||||||||||||||
Glow wire test (°C) | 750°C | ||||||||||||||||
Operating Temp. (°C) | -20°C~45°C | ||||||||||||||||
Storage Temp. (°C) | -20°C~65°C | ||||||||||||||||
Installation | Wall mount | ||||||||||||||||
Code | Dimension(mm) | Size(mm) | Product Weight (Kg) | Package weight (Kg) | Carton | Qty/CTN | 20GP (pcs) | 40HQ | |||||||||
A | N.W/PC | G.W/PC | N.W/CTN | G.W/CTN | Size(cm) | (pcs) | |||||||||||
WL88-10W | 200 | 100 | 60 | 200*100*60 | 0.71 | 0.832 | 8.52 | 10.65 | 51*32.5*35.5 | 12 | 5256 | 12516 | |||||
WL88-15W | 300 | 100 | 60 | 300*100*60 | 1.09 | 1.26 | 13.1 | 15.96 | 64*36*35.5 | 12 | 3816 | 9240 |
